North Atlantic Overview
Summary
5/26/2024
8 min read
Crossing the Atlantic along the Blue Spruce Routes is best accomplished between FL200 and FL280. Below FL200, you start to lose VHF communication and radar coverage. At FL290 and above, additional navigation, communication, and surveillance equipment requirements and authorizations (LOAs) are needed to operate legally.
NAT Doc 007 is the primary, condensed source of information for crossing the North Atlantic. It is available here: NAT DOC 007.
Details
North Atlantic Airspace (NAT)
Flying within Oceanic airspace vastly differs from flying within domestic or European airspace. Outside of radio navigation range and radar coverage, different operational procedures are implemented to ensure proper separation between aircraft for normal and contingency ops. The NAT is the busiest oceanic airspace and has some unique operational requirements in and of itself.
This article intends to orient you to the NAT structure, geography, and altitude requirements for operations.
Most aircraft conducting trans-Atlantic crossings are airline and GA aircraft capable of completing the trip nonstop in the upper flight levels. Training providers, understandably, cater NAT training materials to these operators. Finding the relevant information can take a lot of work for an operator flying smaller aircraft at lower altitudes. This guide is an attempt to view and teach the material from the perspective of a small operator.
NAT Doc 007, prepared by the ICAO European and North Atlantic Office, is the best resource for learning about North Atlantic Operations. For your orientation, the material below is divided into two major sections: information for all operators and information specific to small operators (those without HF, Datalink, or advanced LOAs flying along the Blue Spruce Routes below FL290).
All Operators
Oceanic operations come in three layers: Navigation, Communication, and Surveillance.
Navigation
The NAT consists of six Oceanic Control Areas (OCAs), as shown on the map. These are like your ATC centers. Unlike domestic ops, however, you don't communicate directly with them; more info later. The majority of NAT Doc 007 is dedicated to operations in the North Atlantic High Level Airspace (NAT HLA) from FL285-FL420 (NAT Doc 007 1.1.1)
Two main route structures—the Organized Track System (OTS) and the Blue Spruce Routes—are layered over the NAT. If you are not a defined route, you are flying a "Random Route." Where you fly and your altitude affects your required authorizations and equipment requirements. Technically, there are more routes running north and south off the coast of Spain and France and a few odd ones around Greenland/ Iceland. The OTS and Blue Spruce are the main ones to know.
Blue Spruce Routes
NAT Tracks on Foreflight US IFR Ocean map layer
The Organized Track System is the primary means of crossing the Atlantic—most traffic is airliners. The routing changes every day because OCAs optimize these routes for winds and military airspace operations. Two flows dominate the NAT. In the morning, flights leave Europe for the Americas, called the westbound or day tracks. Conversely, in the evening, flights leave the Americas for Europe, called the eastbound or night tracks. Starting at the far North, the tracks are identified as A, B, C, etc., for traffic flying West, and at the far South, the tracks are Z, Y, X, etc., for traffic flying East.
The most efficient tracks, the core tracks, are in the middle of the respective East and West flows. Separation standards on these tracks are the tightest, and accessing these optimized routes requires the highest authorizations (LOAs).
Lastly, all routes, including random routes, are a combination of lat-long waypoints and GPS waypoints. A route across the Atlantic would begin at a GPS entry waypoint at the Flight Information Region (FIR) boundary, called the Oceanic Entry Point (OEP). Then, the route would consist of lat-longs, might include an NDB over Greenland, and end with another GPS waypoint exiting the FIR on the far side, called the Oceanic Exit Point (OEP).

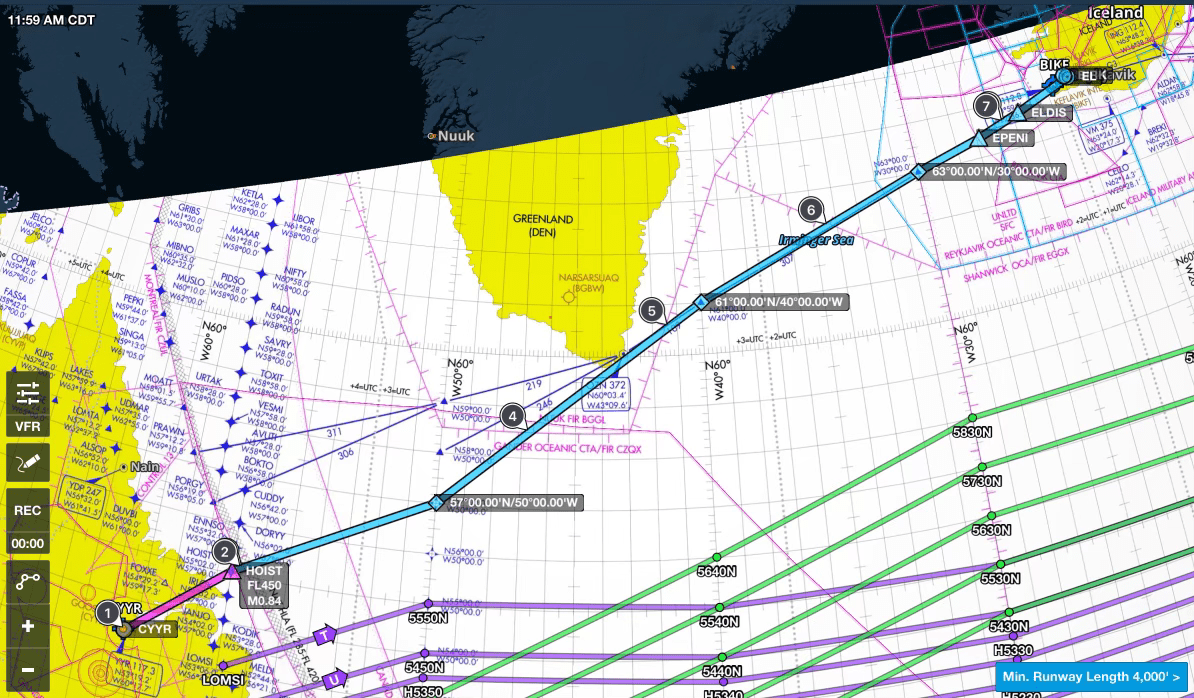

For Example:
Navigating altitude in the NAT is also more complicated, and the airspace has several levels to be aware of. The previously mentioned tracks run from FL340 to FL400. The tracks are contained within a more extensive layer called the North Atlantic High Level Airspace (NAT HLA) from FL290 to FL410. Flying in the NAT HLA requires a few special authorizations: RVSM, NAT HLA, and RNP 4 (or 10, depending on your route/track).
Key takeaway: without those LOAs, you are limited to FL280 and below unless you can get above FL410.
Altitude floors vary. Generally, flights above 5500 ft are in controlled airspace, and an IFR flight plan is needed. Controlled airspace above Nuuk (Greenland) does not start until FL195 and up.
Communication
Six aeronautical radio stations relay VHF and HF communications to the OCAs (5.1.5). The radio stations correspond to the OCAs in geography and mostly in name, Reykiyavik OCA and Iceland Radio being the exception. Radio is who you talk to for providing position reports and requesting altitude or route changes. Radio then relays to the OCAs and gets back to you with instructions.
Across the airspace, the emergency frequency 121.5 and the air-to-air frequency 123.45 are available as secondary communication means (5.2). All radio stations and aircraft should monitor these, which can be a potential means of relaying radio transmissions via other aircraft if you are not getting direct contact with the radio station.
Sattilite-based Data Link systems (CPDLC) are a third means of communication. Usually found on mid-sized jets and up, this is a direct way to send and receive text messages with the OCA. It is so effective that there is now a Datalink Mandate (DLM) for all aircraft from FL290-FL410 except for a corridor over Iceland and Greenland (NAT Doc 1.8).
DLM Exclusion Corridor
Surveillance
The Datalink Mandate requires you to be equipped with CPDLC and ADS-C and have LOAs for operations. CPDLC + ADS-C = FANS 1/A. FANS stands for Future Air Navigation Systems. The DLM exemption corridor exists because VHF coverage and ADS-B surveillance are reliable in this airspace. Outside the DLM, satellite-based ADS-C surveillance systems are required to meet appropriate separation standards.
The important takeaway is that if you do not have CPDLC or ADS-C equipment and corresponding LOAs, you are limited to below FL290 or through the DLM exemption corridor. Notice the stars are aligning with both navigation and surveillance at FL290.
Small Operators
While most of NAT Doc 007 focuses on high flyers, nuggets for small operators are sprinkled throughout, including this gem from the Forward:
“Aircraft without NAT HLA or RVSM approvals may, of course, also fly across the North Atlantic below FL285. However, due consideration should be given to the particular operating environment. Especially by pilots/operators of single and twin engine aircraft. Weather conditions can be harsh; there are limited VHF radio communications and ground-based navigation aids; and the terrain can be rugged and sparsely populated. International General Aviation (IGA) flights at these lower levels constitute a very small percentage of the overall NAT traffic but they account for the vast majority of Search and Rescue operations."
You've been warned.
Navigation
The default requirement in the NAT is to have two Long Range Navigation Systems (LRNS). To cross with one LRNS, you must fly along the Blue Spruce Routes. If you are curious, they are called the Blue Spruce Routes because WWI pilots flew these routes in aircraft with wooden spruce propellers and blue-painted prop tips.
The list of Blue Spruce Routes appears in NAT Doc 007 3.2.1.a, but it is more easily visualized with the oceanic map overlay on Foreflight. Two routes require HF radios. Both fly through Shannon's airspace, which is the source of the HF requirement.
The routes are specifically defined, but you may get routed via nearby waypoints or lat-longs in the wild. Think of them as corridors between airports more than black-and-white routes. The two main Blue Spruce routes from Canada to Iceland are:
CYYR - BGBW - BIRK or BIKF
and
CYFB - BGSF - BIRK or BIKF
Communication
Both 4.2.12 and 4.1.1 state HF radios are required outside VHF coverage. However, some exceptions apply. The Canadians (i.e., Gander OCA) allow exemption from HF along the Blue Spruce Routes. This allows aircraft to cross at lower altitudes without VHF coverage legally.
However, VHF coverage is pretty good above FL200. In the last decade, VHF and ADS-B coverage has improved significantly. During my last crossing, I experienced domestic-like communication throughout. The one spotty gap remaining is the midpoint between Goose Bay, Canada, and Narsarrsuaq, Greenland. VHF should be sufficient if you plan to fly between FL250 and FL280 on this route, and above FL200 works for the northern route.
Adding an HF radio remains an option for a crossing. If your aircraft's range allows it, it would open up additional routes, such as through the Azores. You can check with your OEM for HF options, or Aviation HF has rentals. More information about required aircraft equipment can be found here.
Reykjavik VHF Coverage Map
Surveillance
Radar and ADS-B coverage is limited due to those systems' ground-based nature. However, it has improved in recent years as ADS-B has been rolled out. The map below depicts areas where you can expect radar and ADS-B coverage in green. Notice how the green band matches the DLM exemption corridor and the Blue Spruces routes. Knowing you will be on radar screens for most of the crossing is of some comfort.

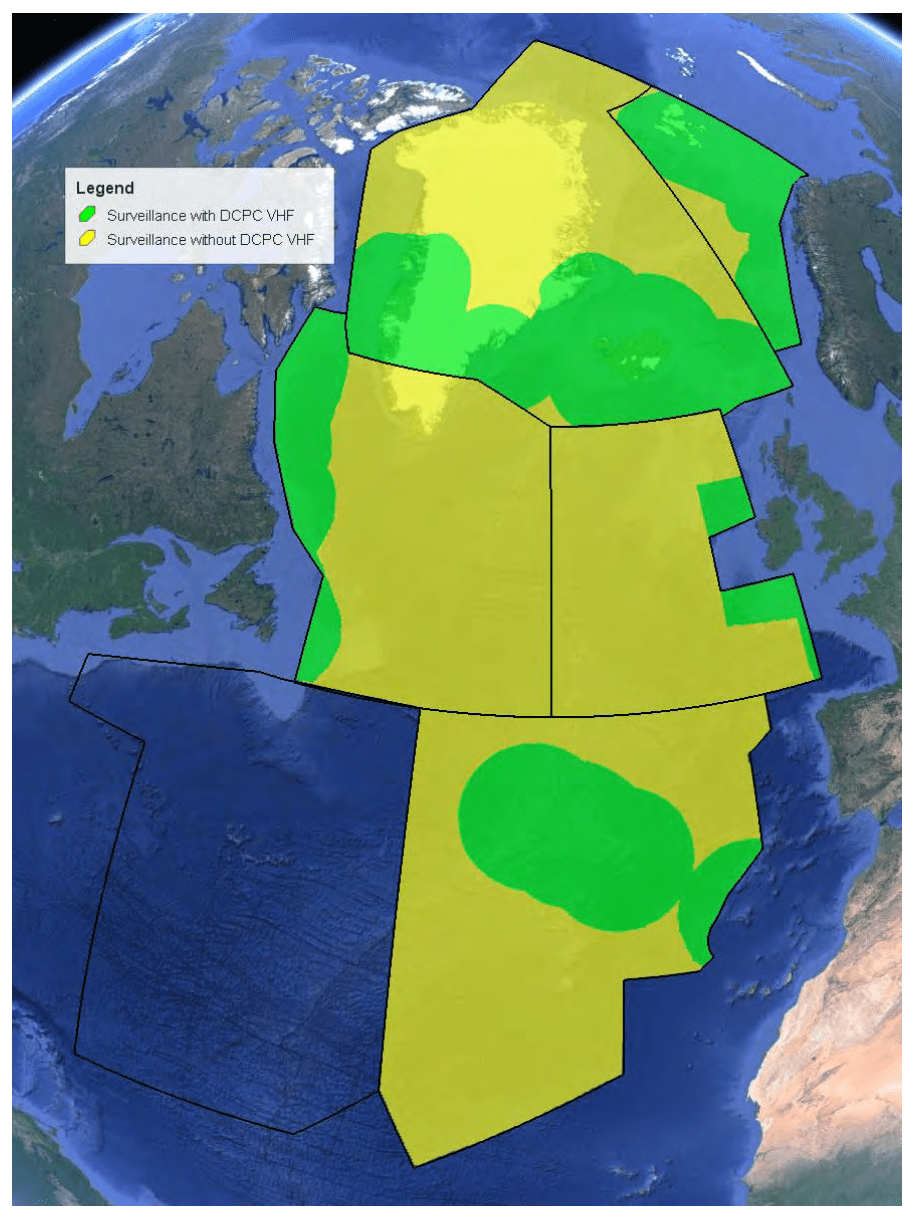

Radar and ADS-B Coverage Map
End Note
Tackling a crossing in small aircraft is an exception of the rules. Two LRNUs are required, but below FL290, you only need one. You must have radio comms over your whole route (HF), but Blue Spruce routes allow VHF only. Datalink is required unless you fly below FL290 or the DLM exclusion area.
If you have greater equipment capabilities, by all means, pursue the additional authorizations and airspace access. If you do not, it is vital to understand the limits of where you can operate.
Final note: NAT Doc 007 Chapter 15 is written specifically for operations below FL290 through the NAT. The six pages are worth your read.
Aviate
Review Aircraft Equipment for a refresher on what equipment you need to complete the operation.
Review if you have the equipment to pursue the LOAs required to fly above FL290: RVSM, RNP 4 (or 10), NAT HLA, CPDLC, and ADS-C.
Read NAT Doc 007 Chapter 15
